LED工礦燈
發布日期：2017-08-19 作者：雷舒科技

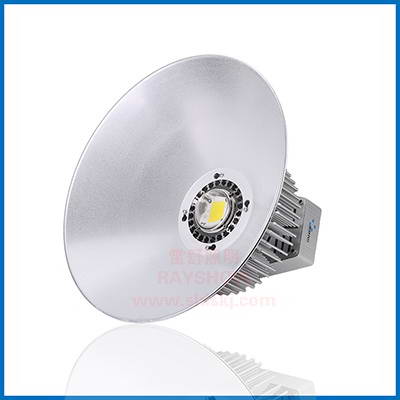

What is LED high bay light
LED high bay light is super energy efficient, using approximately 85% less energy than halogen or incandescent lighting – meaning significant savings on your power bills. LED high bay light also have a much longer lifespan than other types of lighting.
2、 Advantage
Energy Saving and Eco-Friendly；
Shrilled cost on projects;
Large area of lighting；
Longer usage lifetime；
Low power consumption；
Gentle Lighting Emission.

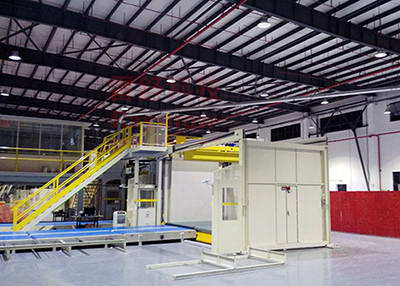

3、 Application
Workshop/Warehouse
Highway toll station/Gas station
Supermarket/Exhibition hall
Gymnasium etc.
LED High Bay Light List
|
Chip Brand |
Model |
Driver Brand |
Input Volt （V/AC） |
Working Volt. （V/DC） |
Current （mA） |
Efficacy （lm/W） |
IP Rate
|
Chip Watt （Chip） |
|
BRIDGELUX (BXCD) |
LS-BG30 |
MeanWell Invertronics MOSO |
90-305 |
30-36 |
900 |
130-140 |
IP64 |
30*1W |
|
LS-BG50 |
1500 |
50*1W |
||||||
|
LS-BG80 |
2300 |
80*1W |
||||||
|
LS-BG100 |
3000 |
100*1W |
||||||
|
LS-BG120 |
3600 |
120*1W |
||||||
|
CREE (XPL) |
LS-CG50 |
MeanWell Invertronics MOSO |
90-305 |
24-27 |
1900 |
150-160 |
IP64 |
8*(1-10)W |
|
LS-CG80 |
36-39 |
2000 |
12*(1-10)W |
|||||
|
LS-CG100 |
45-48 |
2000 |
15*(1-10)W |
|||||
|
LS-CG120 |
54-57 |
2000 |
18*(1-10)W |
|||||
|
LS-CG150 |
33-36 |
3950 |
22*(1-10)W |
|||||
|
LS-CG180 |
42-45 |
3850 |
28*(1-10)W |
|||||
|
LS-CG200 |
48-52 |
3800 |
32*(1-10)W |
|||||
|
LS-CG240 |
39-42 |
5600 |
39*(1-10)W |
|||||
|
LS-CG300 |
33-36 |
3950 |
22*(1-10)W*2 |
|||||
|
LS-CG400 |
45-48 |
3800 |
30*(1-10)W*2 |
|||||
|
OSRAM LUW CRDP |
LS-OG50 |
MeanWell Invertronics MOSO |
90-305 |
34-37 |
1400 |
130-140 |
IP64 |
24*(1-3)W |
|
LS-OG80 |
34-37 |
2100 |
36*(1-3)W |
|||||
|
LS-OG100 |
34-37 |
2800 |
48*(1-3)W |
|||||
|
LS-OG120 |
42-46 |
2800 |
56*(1-3)W |
|||||
|
LS-OG150 |
54-58 |
2800 |
72*(1-3)W |
|||||
|
LS-OG180 |
54-58 |
3500 |
90*(1-3)W |
|||||
|
LS-OG200 |
48-56 |
4200 |
96*(1-3)W |
|||||
|
PHILIPS LUXEON M |
LS-PG50 |
MeanWell Invertronics MOSO |
90-305 |
66-72 |
700 |
150-160 |
IP64 |
6*(1-10)W |
|
LS-PG80 |
99-110 |
700 |
9*(1-10)W |
|||||
|
LS-PG100 |
108-140 |
700 |
12*(1-10)W |
|||||
|
LS-PG120 |
154-168 |
700 |
14*(1-10)W |
|||||
|
LS-PG150 |
204-207 |
700 |
17*(1-10)W |
|||||
|
LS-PG180 |
236-258 |
700 |
20*(1-10)W |
|||||
|
LS-PG200 |
264-267 |
700 |
22*(1-10)W |
|||||
|
LS-PG240 |
324-326 |
700 |
27*(1-10)W |
|||||
|
LS-PG300 |
204-207 |
700 |
17*(1-10)W*2 |
|||||
|
LS-PG400 |
264-267 |
700 |
22*(1-10)W* |
|
5、 Failure Handing
|
Description |
Analysis |
Solution |
|
LED high bay light is off |
1. Check the connection of Power lines |
1. Reconnect the power line and measure voltage |
|
2. LED Driver failure |
2. Replace with a new driver |
|
|
3. LED chip failure |
3. Replace new LED chip |
|
|
LED high bay light malfunction |
1. Check LED driver output |
1. Replace with a new driver |
|
2. LED chip failure |
3. Replace new LED chip |
|
|
LED high bay light flashing |
1. Check LED driver output |
1. Replace with a new driver |
|
2. LED chip failure |
3. Replace new LED chip |
6、 Safety Information
WARNINGS
To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and
Maintained by a qualified electrician only, in accordance with all applicable electrical codes.
To avoid electric shock:
? Be certain electrical power is OFF before and during installation and maintenance.
? Luminaire must be connected to a wiring system with an equipment-grounding conductor.
? Make sure the supply voltage is the same as the rated luminaire voltage.
? Do not operate in ambient temperatures above those indicated on the luminaire nameplate
7、 Warranty
FIVE YEARS FREE MAINTENANCE
8、 Certificate
ISO9001:2008 | UL | FCC | CCC | ROHS | CE
9、 Accessories
The instruction have a copy and certification for each LED high bay light.
10、 Cautions of Installation
1 Make sure no short circuits and cable exposure after installation.
2 Turn the luminaire off and call for repairs when it is not working powered on.
3 Turn the luminaire off and call for repairs when it smokes or sparks.
